| DISCONTINUED PRODUCT | REPLACEMENT PRODUCT | |
| DESCRIPTION. | INTERNAL SUN SENSOR | Automate Internal Sun Sensor |
| CODE. | MTRF-SUNSENS | MT02-0302-067003 |
| PACK SIZE. | 1 | 100 UNITS | 1 | 100 UNITS |
| COLOUR / FINISH. | White | White |
| LENGTH. | 1.68in [43mm] ⌀ x 0.61in [15.6mm] | 2.35in [60mm] ⌀ x 0.69in [17.5mm] |

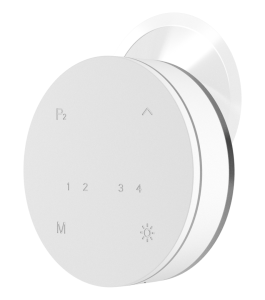

| IMAGE. |  |
 |
| USE WITH. | All ARC Motors | |
| TRANSITIONING. | DEC 2024 | |
PRODUCTION / INSTALLATION Improvements
- Brand new design
- Battery access does not require a tool anymore, just twist the back over off.
- Sensor can be mounted by double side tape or by the new suction cup method.
- Sensor modes have been changed:
- Discontinued Sensor
- Mode 1- Light Level Triggers Shade to Close
- Mode 2- Light Level Triggers Shade to Close/ Once light is below Trigger Level for more than 15 min the shade Opens.
- Mode 3 (Exterior Shades)- Same as Mode 2, however the shade senses when it covers the sensor and backs back up just enough to uncover sensor.
- New Sensor
- Mode 1 (Exterior Shades)- Light Level Triggers Shade to Close (shade covers sensor)
- Mode 2- Light Level Triggers Shade to Close/ Once light is below Trigger Level for more than 15 min the shade Opens.
- Mode 3 (Exterior Shades)- Same as Mode 2, however the shade senses when it covers the sensor and backs back up just enough to uncover sensor.
- Mode 4 – Light Level Triggers Shade to Favorite Position/ Once light is below Trigger Level for more than 15 min the shade Opens.
- Discontinued Sensor
FUNCTIONAL Improvements / Changes
- Switch from Coin Cell Battery to more accessible AAA battery
- Additional Mode added to Sensor allowing for an additional exterior shade configuration.
- Increased sensitivity and reliability
AESTHETIC Improvements / Changes
- Larger sensor diameter and thickness with increased performance.
- New design is a solid white color.
